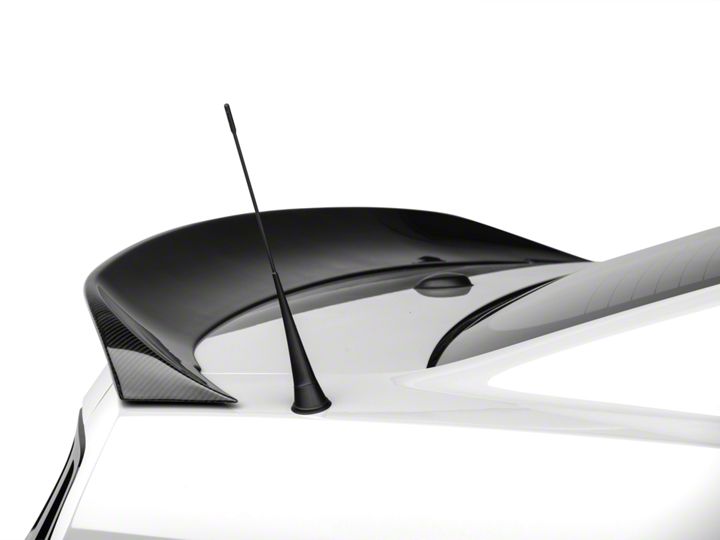

How To Install a MMD Ducktail Spoiler - Carbon Cobweb - on your 2022-2014 Mustang

Installation Time

iii hours

Tools Required

• 10mm Socket wrench
• Phillips +/- Flat head screwdriver (may be needed)
• Automobile trim/clip removal tool
• Plastic or house rubber chisel – Bondo rubber scraper set works well.
• Clamps with rubber, non-annoying grips
• Non-abrasive agglutinative remover – Automotive Goo Gone works well.

Shop Parts in this Guide

• MMD Ducktail Rear Spoiler; Carbon Fiber (10-fourteen Mustang)

Supplies Included:

•  MMD Ducktail Spoiler (one)

•  6mm-1.0 10 16mm Pan Head Bolts (4) – It may be necessary to purchase 6mm-1.0 10 12mm bolts (run across instructions)

•  6mm Washers (4)

•  Cocky-adhesive foam pads (4)

•  3M Double-sided foam adhesive (ane roll)

•  Booze Cleaning Wipes (ii)

•  3M Adhesive Promoter Wipe (ane)

•  Self-adhesive strips (4) – uncertainty of use

•  Go along the insulating wrap used in packaging for protection during installation.

Removal of torso liner

1. Remove the thirteen plastic clips of the torso liner using a clip removal tool. The center pin pulls upwards (just not removed) which allows the clip to be removed in entirety.

2. Remove the liner, being careful of the emergency trunk release lever and the trunk latch mechanism.

Removal of Factory Spoiler

1. Either have assist with supporting the spoiler while removing, or use soft-grip clamps to back up the spoiler during removal. The insulating packaging wrap may exist used equally an added protective cover for the clamps.

2. Using the 10mm socket wrench, loosen each of the 4 nuts securing the spoiler to the trunk hat. Ii of the nuts are exposed by careful removal of black plastic plugs using a prying tool. After loosening, remove the nuts carefully while ensuring support of the spoiler to avert harm to the vehicle.

three. Close the trunk lid and carefully split the agglutinative cloth betwixt the spoiler and torso. This footstep requires patience and fourth dimension to avert scratching the pigment of the vehicle. Combining Bondo scrapers and agglutinative remover works well for this pace. It is recommended that the scrapers be used to pry from the trailing border to decrease the chance of scratching the pigment of the trunk. Use caution if prying from the leading border. Gentle pressure may be applied to elevator the spoiler from the trunk later on all adhesive has been separated.

4. After successful removal of the spoiler, at that place volition be adhesive tape still attached to the trunk. Advisedly clean all remaining residue from the trunk using a scraper and agglutinative remover. Applying LOW heat with a pilus dryer or oestrus gun while scraping may assist in removal of the cloth. This step requires time and patience.

v. When all balance is cleaned from the body, wipe the area that the new spoiler will exist applied using the alcohol pads.

Installing the New Spoiler

1. Apply the four foam pads to the lesser surface of the spoiler around the threaded insert holes.

2. Wipe the edge of the bottom surface of the spoiler with 3M agglutinative promoter and allow to dry for threescore seconds.

3. Attach 3M double-sided tape around the entire border of the bottom surface of the spoiler. Notation: Prior to completion of the next step, information technology is recommended to try a dry fitting for alignment and sizing of the bolts. The provided bolts were as well long for my installation, thus shorter bolts were required to be purchased and used instead. When all pieces announced to accept proper fit, proceed with the adjacent step for final installation.

4. Remove the adhesive backing and align spoiler with the holes in the torso. Using 6.0mm-i.0 bolts to secure the spoiler to the trunk. DO Not allow adhesion of the double sided tape until the spoiler is aligned in proper position. It IS NOT EASILY REPOSITIONED!!!

5. After tightening all 4 bolts, close the trunk and use pressure down on the spoiler to ensure complete adhesion of the tape.

Reinstalling trunk liner

1. Reinstall the 2 plastic plugs over the spoiler bolts.

2. Reposition the torso liner, ensuring repositioning of the emergency torso release lever and the latch mechanism.

3. Replace all thirteen clips to secure the liner.​
